HD 1080P SDI 20X Optical Integrated Camera 2.8" CMOS ZC4-A2001Winsafe
ZC4 Serie SDI 20X Integrated camera with high quality, new design, good used in recording classroom and big video conference room.
Feature
※ H.265 video compression, dual stream
※ 2.8" Exmor CMOS
※ Support various HD video formats
※ Has 3G-SDI output interface
※ 20X Optical zoom, 12X digital
※ With OSD menu
※ With RS485 & RS232 control interface
※ Has image flip function
※ Has 5 buttons at back panel for easy configuration
Dimensions

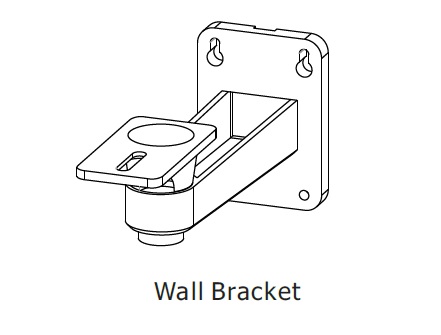

Accessories
Specification
|
Model No. |
ZC4-A2001 |
|
Image Sensor |
1/2.8" Exmor CMOS, 2.14MP |
|
HD Signal Format |
1080P/60,1080P/50,1080P/30,1080P/25,1080I/60;720P/60,720P/50,720P/30,720P/25 |
|
WDR |
Yes |
|
Focal |
f =4.7mm -94.0mm |
|
IRIS |
F1.6 - F3.5 |
|
Zoom |
Optical: 20X, Digital: 12X |
|
Field of View |
59.5° - 2.9° |
|
Focus |
Auto, Manual, One push |
|
Min.Illumination |
0.5Lux(Color), 0.1Lux(B/W) |
|
Shutter Speed |
1/1 - 1/10,000s |
|
AGC |
Auto/Manual |
|
White Balance |
Auto, Indoor, Outdoor, One push, Manual, Auto Track, |
|
AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
|
BLC |
Yes |
|
S/N Radio |
Above 50dB |
|
Preset Number |
256 |
|
OSD |
Yes |
|
Image Flip |
Yes |
|
Noise Reduction |
2D/3D |
|
Network |
|
|
Max,Image Size |
1920x1080 @60fps |
|
Video Compression |
H.265,H.264 |
|
Audio Compression |
AAC |
|
Protocol |
HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
|
Dual Stream |
Support |
|
Simultaneous Users |
up to 10 users |
|
Interface |
|
|
Video Output |
3G-SDI |
|
Ethernet |
RJ45,100M |
|
Control Interface |
RS-232,RS-485 |
|
General |
|
|
Protocol |
VISCA and PELCO-D, PELCO-P |
|
Spectra Address |
1~7(VISCA),0-255(PELCO-D/PELCO-P) |
|
Power Supply |
DC12V |
|
Power Consumption |
＜15W |
|
Working Temp |
0°C - +40°C |
|
Storage Temp |
-20°C - +60°C |
|
Dimension |
170mm x 80mm x 70mm |
|
Weight |
0.83KG |
|
Color |
Grey |
