USB 2.0 HD Video Conferencing Camera UHV-10X-U2S Winsafe
UHV-10X-U2S Smart and affordable USB 2.0 HD Video Conferencing Camera, ideal for huddle room, specially corporation, telemedicine, on-line education and other professional cloud-based unified communication.
UHV-10X-U2S Smart and affordable USB 2.0 HD Video Conferencing Camera, ideal for huddle room, specially corporation, telemedicine, on-line education and other professional cloud-based unified communication.
Feature
※ Adopted advanced industrial level ISP, Sony 1/2.8 5MP CMOS sensor, output full HD 1080p with 60 frames per second video streaming, to offer you completely high definition, noiseless and crisp, realistic color image with full details
※ Using multi-element 10x lossless optical zoom lens, with 62.5 degree wide angle FOV, along with smooth pan & tilt rotation and fast & accurate focus to capture any view in conferencing space
※ USB 2.0 Output, Plug-and-Play, Standard UVC1.5 protocol enable users to connect camera with PC by USB cable
※ Compatible with most leading video conferencing software: Zoom.us, Skype4business, Vidyo, Bluejans, Webex, Google Hangout, Trueconf, Gotomeeting ect, at different operation Windows, Mac,Android and Linux. etc.
※ FECC(Far End Camera control) supported
※ Standard Visca and UVC 1.5 Protocol, PTZ control and firmware upgrade via RS232(RS485) and USB port
※ 128 presets supported
※ Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling.
Specification
Model No. |
UHV-10X-U2S |
Sensor |
1/2.8 inch high quality, SONY CMOS Sensor, 5MP |
Video System |
1920x1080p60/50/30/25,1280x720p60/50/30/25 |
Zoom |
10x optical zoom + 12x digital zoom |
View Angle |
6.43°(wide) - 62.5°(tele) |
SNR |
More than 50dB |
Focal Length |
f=4.7(wide) - 47mm(tele) |
Minimum Lux |
0.1Lux |
White Balance |
Auto/Manual |
Focus |
Auto/Manual |
Iris |
Auto/Manual |
Black Light Compensation |
ON/OFF |
Anti Flicker |
50Hz/60Hz/OFF |
Pan Rotation Angle |
- 170° - +170° |
Tilt Roation Angle |
- 30° - + 90° |
Pan Rotation Speed |
0° - 120° /s |
Tilt Rotation Speed |
0° - 80° /s |
Preset |
128 via RS232 control; 10 via remote controller |
Control Port |
RS232(Sony Visca), USB3.0(UVC1.5 protocol) |
Video Port |
USB2.0(YUY2 format) |
Input Voltage |
DC12V |
OSD Menu |
English/Spanish/Russia/Chinese |

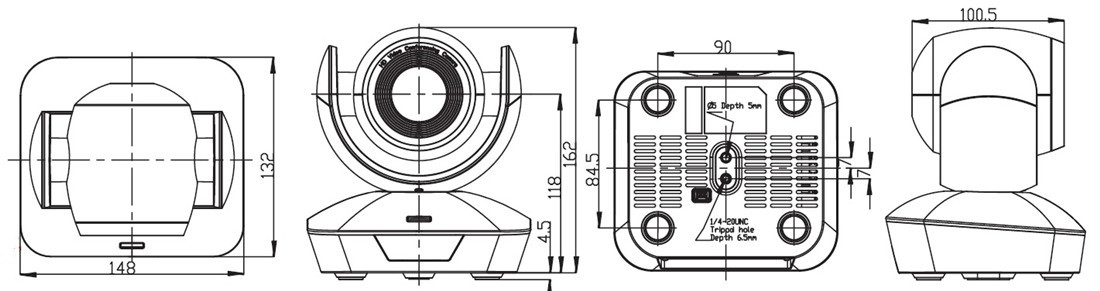

Dimension(W x H x W) |
148mm x 132mm x 161mm |
Package |
280mm x 240mm x 240mm |
