LIQUIDATION- Video conference Controller Keyboard Joystick CKB-E2IP Winsafe
With rich shortcut buttons for common camera setting, it makes camera control super easy and fast.
Application
CKB-E2IP IP keyboard controller controls PTZ camera in network and analog modes, accepting various protocols such as Visca, Pelco D/P ect. With rich shortcut buttons for common camera setting, it makes camera control super easy and fast.
Features
Strong Control Aibility
※ Camera control in IP and analog modes
※ Full VISCA, ONVIF, PELCO-D/P protocols
※ Support IE web setting, built-in web server makes the configuration interface simple and clear
※ Support POE
Easy Operation
* 7 Buttons to swith 7 cameras
* 4D joystick control
* Rocker witch controls zoom speed
* Shortcut keys/knobs for common camera settings
Simple and Beautiful Apperance
* TFT CD screen display
* Elegant design
Technical Specification
|
Model No. |
CKB-E2IP |
|
White Balance |
Button, Auto, Indoor, Outdoor, One Push, Manual |
|
Exposure |
Button, Auto, Manual, Shutter Priority, Iris Priority, Bright Priority |
|
Shortcut Button |
Bright Adjustment, Exposure Gain, BLC, Focus Model Selction, OSD |
|
Shortcut Knob |
R/B Gain, Iris, Pan/Tilt Speed(1-8 Steps), Zoom speed(1-8 Steps) |
|
Protocol |
Full VISCA, PELCO-D/P，ONVIF |
|
Output |
RS422, RS232, RS485, RJ45 |
|
Joystick |
4D joystick |
|
Screen |
TFT LCD 320*240 |
|
Power Consumption |
≤5W |
|
Power |
DC12V-2A |
|
Work Temperature |
-10°C - 55°C / 14°F - 131°F |
|
Work Humidity |
20% - 80% non-condension |
|
Size |
321.6mm x 179.2mm x 105.7mm |
|
Weight |
1630g |
|
Outer box size and specifications |
553*460*350mm / 6 sets |
|
weight |
1.9KG |

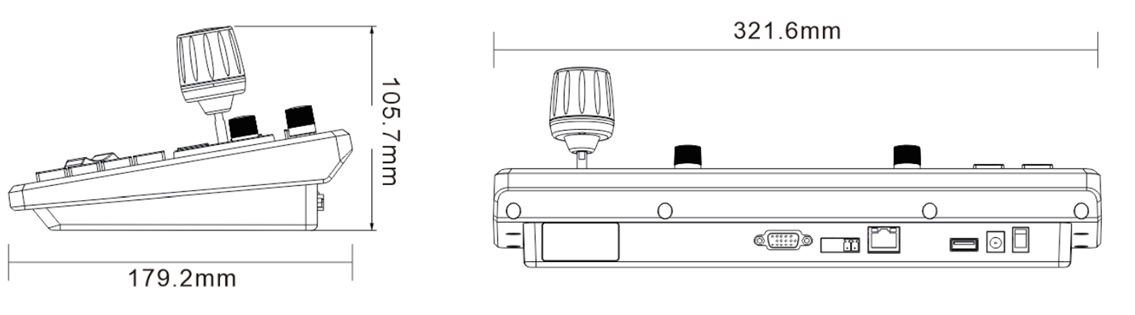

Dimension(mm)
