Description

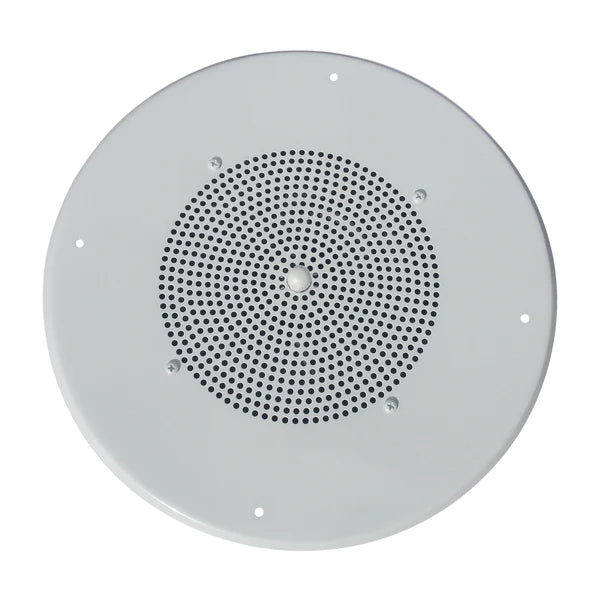

The VOX-CS8STG-VC is a speaker with an integrated volume control that is designed to be easily installed in ceiling tiles.
Features:
- 8 Ohm with 70V/25V Transformer built-in (Taps: 5W / 2.5W / 1W / 0.5W / 0.25W) with Volume Control
- 8" dual cone speaker
- 13" white steel grille
Tech Specs:
| Average Sensitivity: | 90 dB SPL, 1W/1M |
| Loudspeaker Power Rating: | 10W RMS |
| Maximum Power Rating: | 15W @ 8 Ohms |
| Calculated Output: | 100 dB-SPL 5W/1M |
| Magnet Type & Weight: | Ferrite, 5 oz. Nominal |
| Frequency Response: | 85Hz ~ 20kHz |
| Nominal Coverage Angle: | 120° Conical |
| Audio Connection: | Color-Coded Leads |
| Transformer: | 70V/25V (Taps: 5W / 2.5W / 1W / 0.5W / 0.25W) with Volume Control |
| Dimensions: | 13” (Dia.) x 3” (D) |
| Weight: | 2.5 lbs |
| Color: | White |
| Environment: | Indoor |
Specifications subject to change without notice.
