Description
NMS is Integrated to Improve Network Management Efficiency
PLANET GS-2210-24T2S Smart Ethernet switch combined with NMS makes network management easier and more efficient. In addition, it is easy to configure whatever application that the industry needs. It features link aggregation, IGMP, QoS, CLI and more to improve the availability of critical business applications.

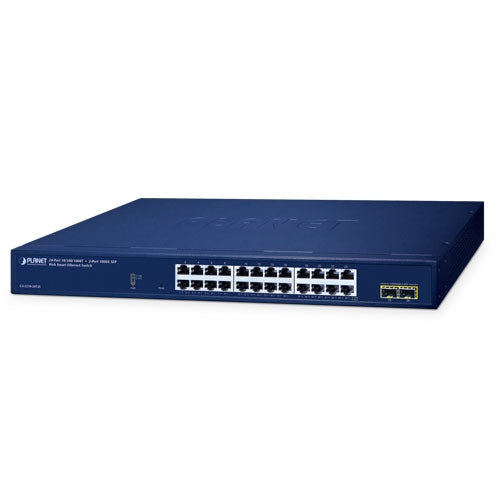

The GS-2210-24T2S provides 24 10/100/1000BASE-T ports and 2 additional Gigabit SFP slots, it provides a quick, safe and cost-effective Web Smart Ethernet Switch solution for small businesses and enterprises.
Through the NMS, administrators can centrally manage networks of up to 102,400 nodes from a central office, thereby greatly improving network and power management efficiency. With its user authentication management, combined with the NMS, the security of data transmission in modern factory automation systems is enhanced.
UNI-NMS Remote Management Solution
The GS-2210-24T2S supports PLANET's Universal Network Management System (UNI-NMS) helping IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS, all kinds of businesses can now be speedily and efficiently managed from one platform.
Physical Ports
- 24 10/100/1000BASE-T Gigabit RJ45 copper ports
- 2 100/1000BASE-X mini-GBIC/SFP slots
- Reset button for system factory default and reboot
Layer 2 Features
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
- Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode
- Back pressure flow control in half-duplex mode
- High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
- 8K MAC address table, automatic source address learning and aging
- Supports VLAN
- IEEE 802.1Q tag-based VLAN
- Supports Link Aggregation
- Maximum 8 trunk groups, up to 8 ports per trunk group
- Cisco ether-channel (static trunk)
- Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to 1)
- Provides port mirror (many-to-1)
Quality of Service
- 8 priority queues on all switch ports
- Support for strict priority and WRR (Weighted Round Robin) CoS policies
- Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4 DSCP
- Port-based WRR
- Strict priority and WRR CoS policies
Multicast
- Supports IPv4 IGMP snooping v1, v2
- IGMP snooping port filtering
- Flood/Drop
- DIP Mode
Security
- Supports DHCP snooping
Management
- Management IP for IPv4
- Switch Management Interface
- Telnet Command Line Interface
- Web switch management
- BOOTP and DHCP for IP address assignment
- Cable Diagnostics to detect the cable connection and the approximate location of the cable fault.
- Firmware upload/download via TFTP or HTTP Protocol for IPv4
- Supports ping test function for IP address or domain name
- NTP (Network Time Protocol)
- PLANET Smart Discovery Utility for deployment management
- PLANET NMS for deployment management
- PLANET NMSViewerPro for deployment management
