Description

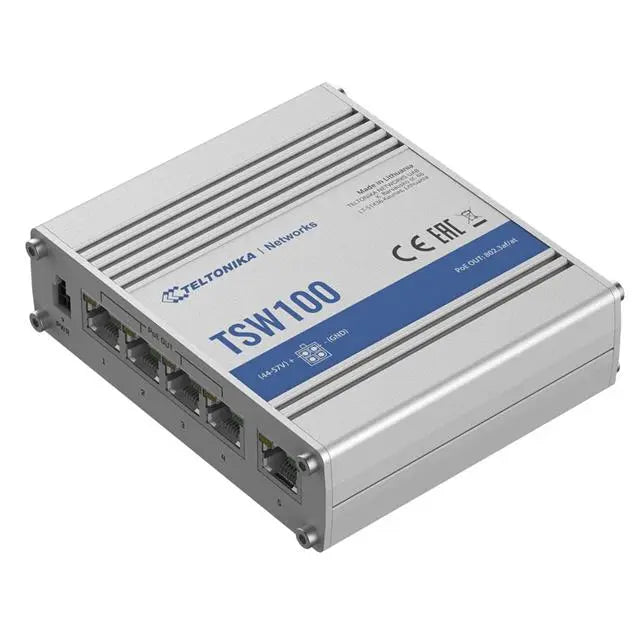

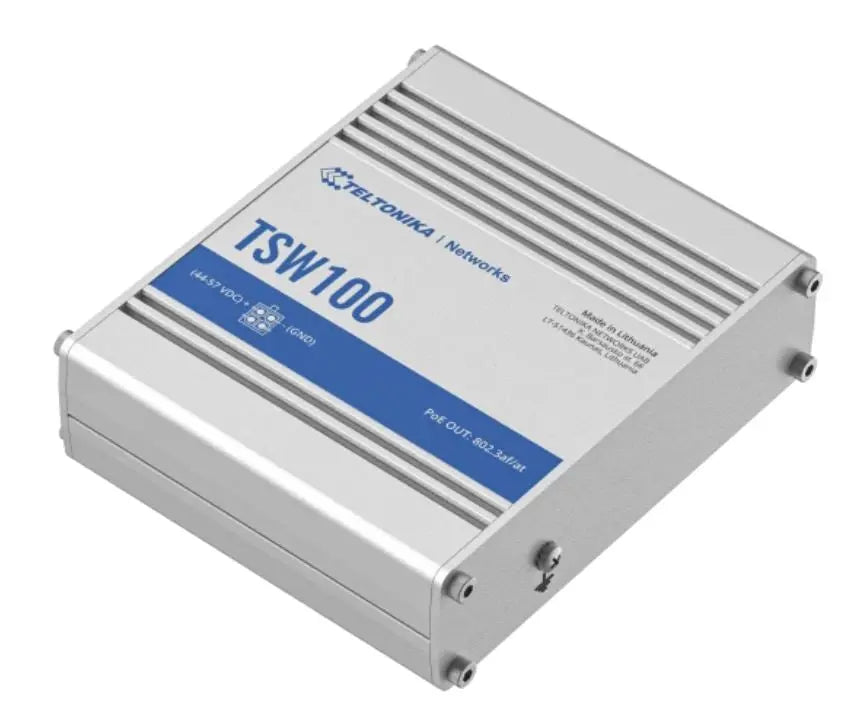

First industrial unmanaged POE switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). This rugged industrial switch is ideal for professional high bandwidth applications.
- TSW100 is the first industrial unmanaged switch from Teltonika Networks.
- Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
- Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
- It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
- Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
-
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
-
PoE ports
Port 1-4
-
PoE standards
802.3af and 802.3at Alternative B
-
PoE Max Power per Port (at PSE)
30 W
-
PoE Power Budget (at PSE)
120 W
-
Bandwidth (Non-blocking)
10 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Jumbo frame support
9216 bytes
-
Connector
4-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC
-
PoE-out input voltage range
44 – 57 VDC
-
Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
-
Ethernet

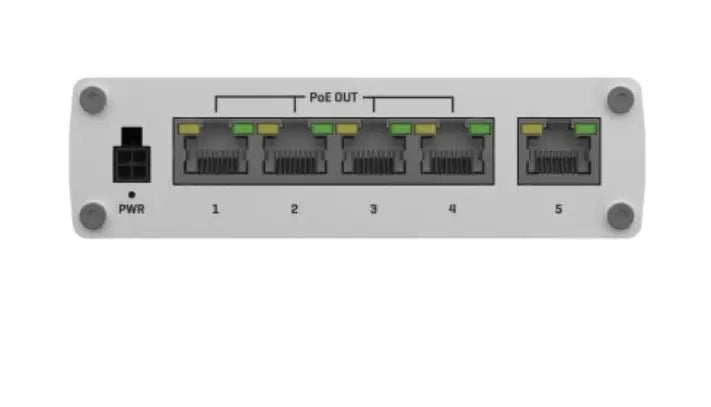

5 x RJ45 ports, 10/100/1000 Mbps
-
Status LEDs
1 x Power LED, 10 x ETH status LEDs
-
Power
1 x 4-pin power connector
-
Other
1 x Grounding screw
-
Casing material
Full aluminum housing
-
Dimensions (W x H x D)
115 x 32 x 95 mm
-
Weight
350 g
-
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
-
Regulatory
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
