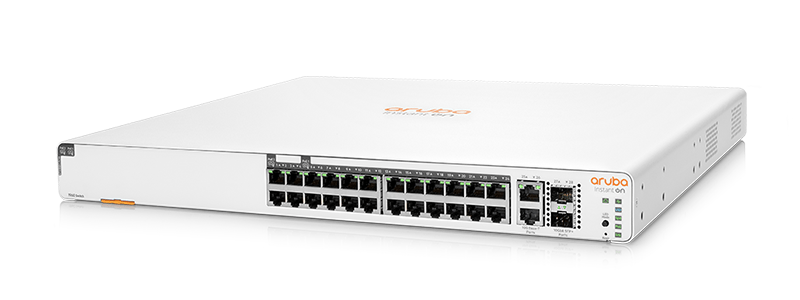

JL807A Aruba JL807A Aruba Aruba Instant On 1960 24G 2XGT 2SFP+ 370W Switch

Aruba Instant On 1960 Switch Series are advanced, smart-managed, stackable Gigabit switches for growing businesses needing the highest performance to support bandwidth-demanding applications.

•

24 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 10/100/1000Base-T - 2 Layer Supported - Modular - 80 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Table Top, Wall Mountable, Under Table, Cabinet Mount

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   24
Uplink Port:   Yes
Modular:   Yes
Stack Port:   Yes
Network (RJ-45):   Yes
Port/Expansion Slot Details:   2 x 10 Gigabit Ethernet Network
Port/Expansion Slot Details:   20 x Gigabit Ethernet PoE+
Port/Expansion Slot Details:   2 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details:   4 x Gigabit Ethernet PoE++

Media & Performance

Media Type Supported:   Twisted Pair
Media Type Supported:   Optical Fiber
Ethernet Technology:   10 Gigabit Ethernet
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T
Network Technology:   10GBase-X
Network Technology:   10GBase-T

I/O Expansions

Number of Total Expansion Slots:   2
Expansion Slot Type:   SFP+
Number of SFP+ Slots:   2

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.1p
Networking Standards:   IEEE 802.1w
Networking Standards:   IEEE 802.1x
Networking Standards:   IEEE 802.3ab
Networking Standards:   IEEE 802.3ac
Networking Standards:   IEEE 802.3ad
Networking Standards:   IEEE 802.3ae
Networking Standards:   IEEE 802.3at
Networking Standards:   IEEE 802.3az
Networking Standards:   IEEE 802.3bt
Networking Standards:   IEEE 802.3i
Networking Standards:   IEEE 802.1D
Networking Standards:   IEEE 802.1Q
Networking Standards:   IEEE 802.1s
Networking Standards:   IEEE 802.1t
Networking Standards:   IEEE 802.3af
Networking Standards:   IEEE 802.3an
Networking Standards:   IEEE 802.3u
Networking Standards:   IEEE 802.3x
Networking Standards:   IEEE 802.3z

Management & Protocols

Manageable:   Yes

Power Description

PoE (RJ-45) Port:   Yes
PoE Budget:   370 W
Frequency:   60 Hz
Frequency:   50 Hz
Power Source:   Power Supply
Number of Power Supplies Installed:   1
Power Consumption:   80 W

Physical Characteristics

Form Factor:   Rack-mountable
Form Factor:   Table Top
Form Factor:   Wall Mountable
Form Factor:   Cabinet Mount
Form Factor:   Under Table
Height:   1.73" (43.95 mm)
Width:   17.42" (442.50 mm)
Depth:   13.80" (350.50 mm)
Weight (Approximate):   4.72 kg

Miscellaneous

Package Contents:

• Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
• 2-post Rack Kit
• Brackets

Warranty

Limited Warranty:   Lifetime
