Description
48 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 462.50 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount, Table Top, Wall Mountable -
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Media Type Supported: Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X
Network Technology: 1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 4
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.1p
Networking Standards: IEEE 802.1w
Networking Standards: IEEE 802.3ab
Networking Standards: IEEE 802.3ac
Networking Standards: IEEE 802.3ad
Networking Standards: IEEE 802.3at
Networking Standards: IEEE 802.3az
Networking Standards: IEEE 802.1ab
Networking Standards: IEEE 802.1D
Networking Standards: IEEE 802.1Q
Networking Standards: IEEE 802.3af
Networking Standards: IEEE 802.3u
Networking Standards: IEEE 802.3x
Networking Standards: IEEE 802.3z
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Frequency: 60 Hz
Frequency: 50 Hz
Power Source: Power Supply
Power Consumption: 462.50 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Table Top
Form Factor: Wall Mountable
Form Factor: Cabinet Mount
Height: 1.73" (43.94 mm)
Width: 17.44" (442.98 mm)
Depth: 13.82" (351.03 mm)
Weight (Approximate): 4.94 kg
Miscellaneous
Package Contents:

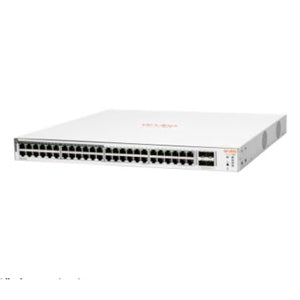

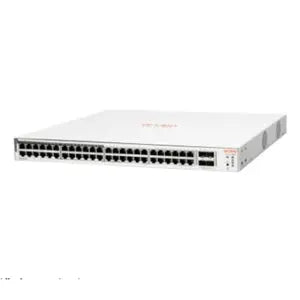

- Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
- 2 x Post Rack Kit
Warranty
Limited Warranty: Lifetime
