PLANET Technology has announced a complete IEEE 802.3af Power over Ethernet Injector solution to filling flexible powering demand from various Ethernet environments where power outlets are hard to find. Now, PLANET has releases the next generation Power over Ethernet Injector, POE-161, with brand-new IEEE 802.3at High Power over Ethernet technology applied. The POE-161 provides the following key features:
■ IEEE 802.3at Power over Ethernet stanard compliant
■ Maximum 30W output power support
■ 10/100/1000Mbps duplex mode support

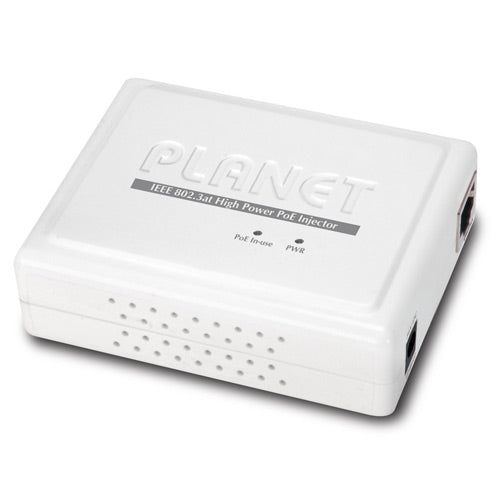

The POE-161 is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet Injector with maximum up to 30 watts of power output over Ethernet cables. It is designed specifically to fill the demand of the growing higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen / video and voice over IP (VoIP) telephones, multi-channel (11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The POE-161 High Power Injector is an ideal solution to delivering data and power to network devices directly via the RJ-45 Port interface without the need of installing extra power outlets and electrical cabling.
Quick and Easy High Power PoE Network Deployment
The POE-161 is a Mid-Span IEEE 802.3at Gigabit High Power over Ethernet Injector which provides DC 56V over Ethernet cables. The POE-161 inserts DC voltage into Cat.5/5e/6 cable, allowing the cable between the Injector (POE-161) and Splitter (POE-162S) to transfer data and power simultaneously for up to 100 meters. The POE-161 delivers the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3at Gigabit High Power over Ethernet Injector, and the connected IEEE 802.3at Gigabit High Power over Ethernet splitter will spilt the digital data and the power into two selectable DC outputs (12VDC / 24VDC).
