Description

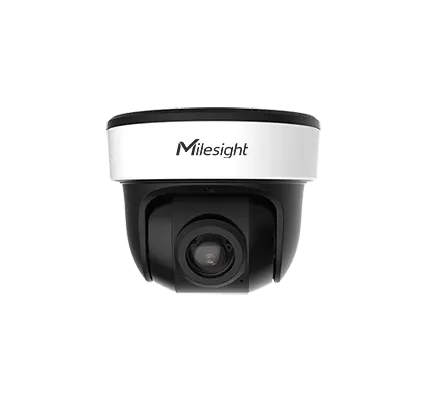

Mini Dome Camera for Ultra-wide Angle Monitoring
1
Name | 5MP AI 180° Panoramic Mini Dome Network Camera |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Lens | 1.68mm @F2.0 |
Mount | M12 |
Field of View | H180°/V95° |
Shutter Time | 1/100000s∼1s |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
IR Distance | 180° IR Illumination Up to 15m |
S/N | >55dB |
Video | |
---|---|
Max. Image Resolution | 2592x1944(Original) |
Primary Stream | 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720) |
Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
Privacy Masking | Up to 8 areas |
ROI | Up to 8 areas |
Image Settings | Saturation/Brightness/Contrast/Sharpness |
Web Access | Support IE/Firefox/Chrome/Safari Browser |
Interface | |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Audio Interface | Built-in Microphone |
Network | |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio | |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/44.1/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | N/A |
Intelligent Analytics | |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
System | |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice&Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & Q & S & T, API |
General | |
Working Temperature | -40℃∼60℃ |
Working Humidity | 0∼90%(Non-condensing) |
Power Supply | PoE(802.3af)/DC 12V±10% |
Power Consumption | 5W MAX, 8W MAX (With IR on) |
Weather Proof | Up to IP67-rated for Weather-resistant Performance |
Housing | Vandal-proof IK10-rated metal housing |
Dimensions | Φ127mmX107mm |
Weight | 853g |
