Description

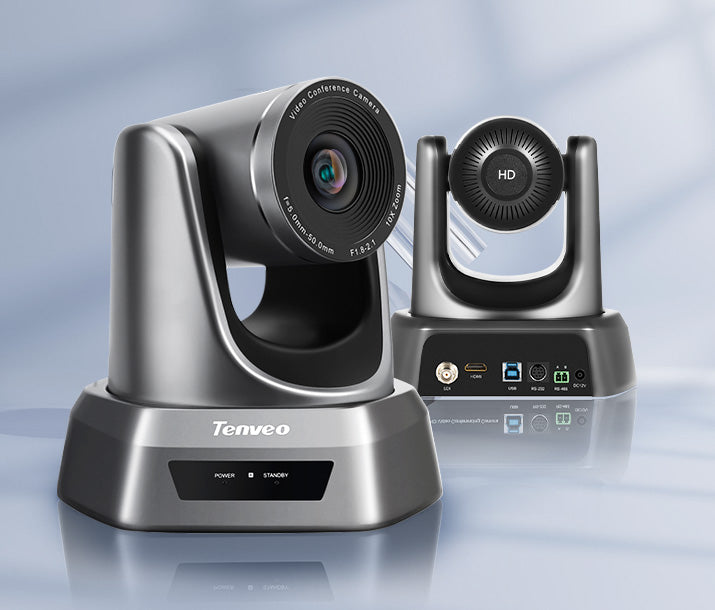

Broadcasting USB, HDMI, RJ45, SDI camera with 10x optical zoom 1080p remote control PTZ camera
1. 10x optical zoom，Sleek and intelligent design， Plug & Play USB3.0 Connectivity
2. Crystal clear HD1080P image quality，Wide field of view with no video distortion
3. Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
4. 1/2.8''SONY CMOS, 2.1MP (16:9) CMOS sensor
5. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
6. Utilizing belt drive technology the PTZ is ultra-quiet and fast
2. Crystal clear HD1080P image quality，Wide field of view with no video distortion
3. Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
4. 1/2.8''SONY CMOS, 2.1MP (16:9) CMOS sensor
5. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
6. Utilizing belt drive technology the PTZ is ultra-quiet and fast
| Sensor | 1/2.9 inch CMOS |
| Effective pixel | 2.38 mega pixel |
| Video output pixel | 1080P60/50/30/25,1080i60/50,720P30/25 |
| Zoom | 10x optical zoom |
| Lens | f=4.34mm～35.17mm |
| Aperture | F1.85～Close |
| Horizontal angle | 68.8°(W)-8.8°(T) |
| Video output | USB, HDMI, SDI |
| Video resolution | 1080P (1920 *1080) |
| Siginal standard | NTSC/PAL |
| Preset position | 64 |
| Control temernal | RS-232,RS485 |
| Shutter | 1/30s～1/10000s, auto |
| Baud Rate | 38400/9600bps |
| Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
| USB protocol | UVC1.1 |
| Minimal Illumination | 0.1Lux |
| SNR | ≥50dB |
| Video encoding format | H.264, MJPEG, YUV |
| Horizontal Rotation | 350°（±175°）0.1°/s～100°/s |
| Vertical Rotation | 90°（±45°）0.1°/s～80°s |
| Power supply | DC 12V/2A |
| Power comsumption | 12W |
