Description

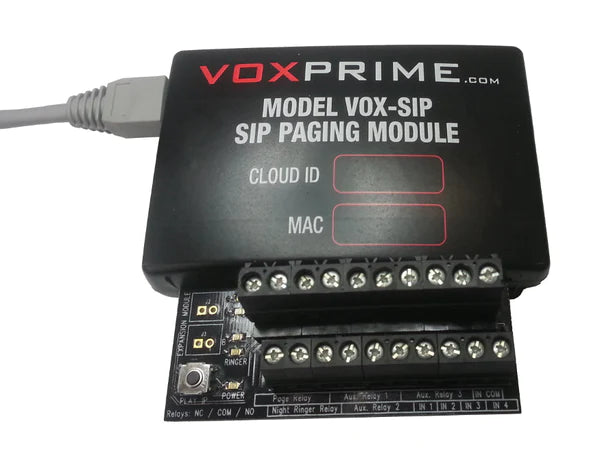

The VOX-SIP is a universal SIP Paging Adapter designed to upgrade and extend the features of any existing telephone paging installation while providing compatibility with any cloud based VoIP phone system without having to replace the legacy amplifier.
Key Features:
- Power over Ethernet (PoE)
- Isolated and balanced audio output
- SIP Extension for Page Port
- SIP Extension for Night Ringer
- SIP compatibility with all leading UC vendors
- Multicast receive or broadcast capability
- Scheduler (automated bells, tones, announcements, music and relays activation)
- Internet Radio
- 1 Page Relay, 1 Night Ringer Relay and 3 Programmable Auxiliary Relays
- 4 Programmable Trigger Inputs
- Time Synchronization over Internet
- Web Based Interface for Remote Access & Configuration
- Remote Upload of Songs, Tones & Messages
- Internal 6GB of flash memory available for audio files
- Internet Remote Management using the VOXPRIME Media Cloud Services
Specs:
| Power Source: | 48V Power over Ethernet (PoE) IEEE 802.3af Class 0 5 VDC Power Supply (optional) |
| Processor: | Linux ARM 11, 32 bits processor (1 GHz) 8 GB of Flash memory, 6 GB available for audio files |
| Supported Audio Formats: | .mp3, .wav, .raw, .wma, .ogg, .voc, .vox, .flac, .aiff, .aif, .aifc, .snd, .3ga, .m4a, .amr |
| Relay Output: | 1 Page, 1 Night Ringer and 3 auxiliary Normally open or normally closed. Max rating 30 V 50 mA. |
| Trigger Input: | Normally open or normally closed dry contact supervision. |
| Configuration: | Web interface |
| Environment: | Indoor |
| Dimensions: | 3.75'' (H) x 3.75'' (W) x 1.75'' (D) |
| Mounting: | Wall mountable or tabletop |
| Weight: | 0.7 lbs |
Specifications subject to change without notice.
