Description

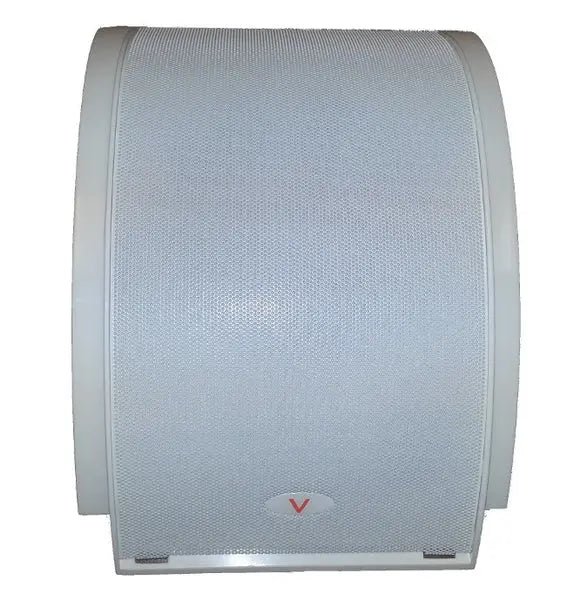

The VOX-HFMW5 is a low-cost, complete loudspeaker system consisting of an 5.25” OD dual cone loudspeaker and a 6W 70V transformer mounted on a screw mount baffle with an open back, surface mount enclosure.
Features:
- 8 Ohm with 70V Transformer built-in (6W / 3W / 1.5W)
- Dual Cone 5.25” Loudspeaker
- Steel Grille
Tech Specs:
| Average Sensitivity: | 90 dB SPL, 1W/1M |
| Loudspeaker Power Rating: | 10W RMS |
| Maximum Power Rating: | 15W @ 8 Ohms |
| Calculated Output: | 99 dB-SPL 5W/1M |
| Magnet Type & Weight: | Ferrite, 5 oz. Nominal |
| Frequency Response: | 150Hz - 17kHz |
| Nominal Coverage Angle: | 120° Conical |
| Audio Connection:v | Screw Terminal |
| Transform: | 70V (Taps: 6W/3W/1.5W) |
| Dimensions: | 11" (H) x 8" (W) x 3.5'' (D) |
| Weight: | 2 lbs |
| Color: | White |
| Environment: | Indoor |
Specifications subject to change without notice.
