Description
- Small and exquisite, easy to install
- Graphical Status lights
- Comfortable keyboard feel, soft backlight
- Access by call, code, indoor switch and RFID card
- Build-in HD camera and with backlight compensation function
- 2 SIP Lines
- HD Voice
- HD Video
- PoE
- Multi-Protection
- Weather Temperature Range

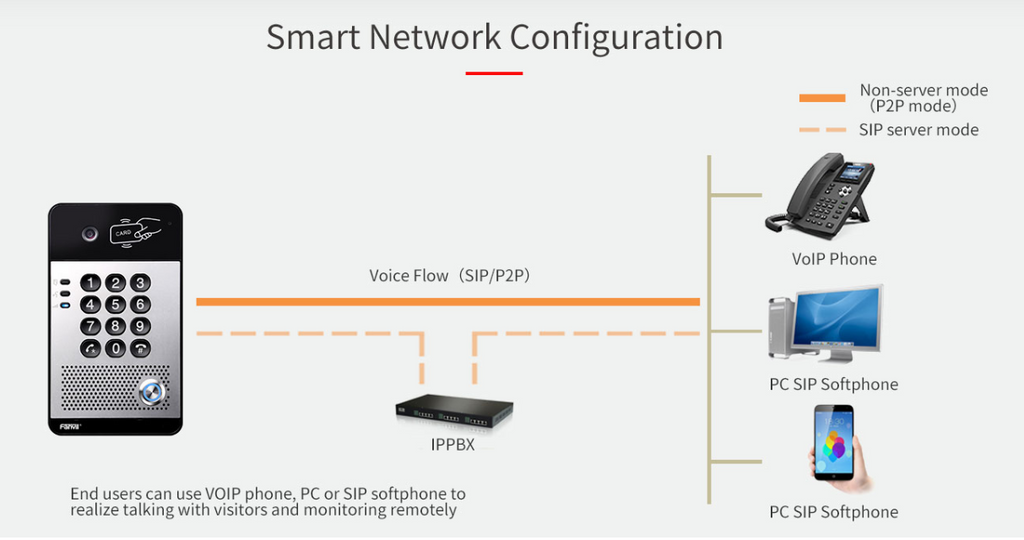

The design of i30 SIP Video Door phone is based on experience and knowledge of Fanvil VoIP phone development. Stream transmission uses standard IP / RTP protocol and video transmission adopts RTSP. I30 have a variety of enterprise-level features and it is compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, Yeastar etc. The i30 SIP Video door phone is designed for operation in indoor conditions.
ï¬ Microphone: -38dB
ï ¬ Speaker: 4Ω / 3W
ï¬ WAN port: RJ-45, 10/100M adaptive
ï ¬ Power supply: 12V ± 15% / 1A DC or PoE
ï ¬ PoE: (Class 3 - 6.49 to 12.95W)
ï ¬ Standby power: 2.76W, 12V / 230mA
ï¬ Network cable: CAT5 or better
ï ¬ Shell material: metal surface, ABS bottom
shell
ï ¬ Installation: wall-mounting
ï ¬ Operating temperature: -20 ~ 60 ℃
ï ¬ Storage temperature: -40 ~ 70 ℃
ï¬Relative humidity: 10~90%
ï ¬ Protection class: IP65
