Description

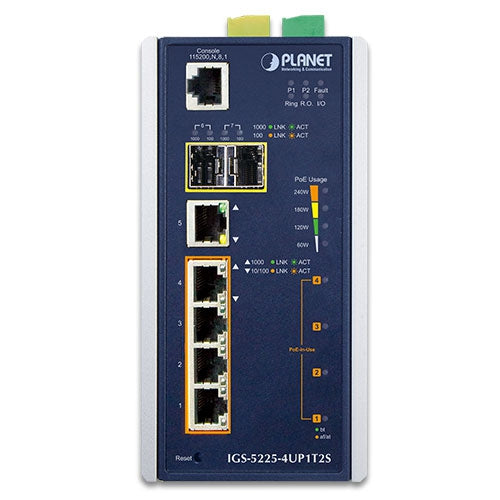

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, the latest version of PLANET IGS-5225-4UP1T2S L2+ Industrial Managed PoE++ Switch features oven 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, one extra 10/100/1000BASE-T copper port and two 100/1000BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports , 95-watt PoH (Power over HD-BASE-T) mode and 4-pair strength fashion to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S can be placed in almost any difficult environment. The IGS-5225-4UP1T2S also allows either DIN rail or wall mounting for efficient use of cabinet space.
