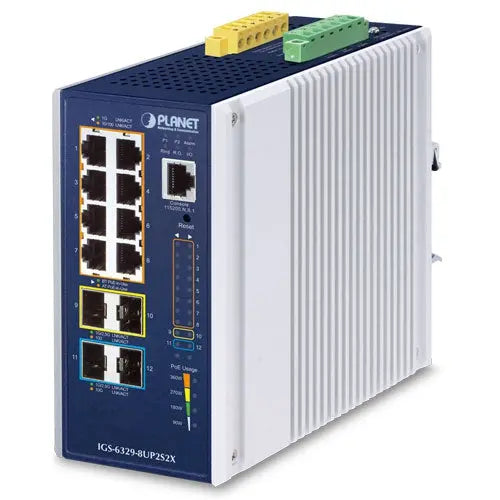

IGS-6329-8UP2S2X Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch IGS-6329-8UP2S2X Planet

Datasheet

Outstanding 802.3bt PoE++ Solution for Hardened Environment

With IN  61000-6-2 and  61000-6-4  Heavy Industrial EMC and railway EN 50121-4 certified design, and complying with the IEEE 802.3bt PoE++ technology, PLANET IGS-6329-8UP2S2X provides non-stop data communication and reliable PoE injection, even with noise interference coming from the heavy industrial field applications.

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6329-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts , two 100/1000/2500BASE-X SFP ports and two 10G SFP+ ports delivered in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports , 95-watt PoH (Power over HD-BASE-T) mode and 4-pair strength fashion to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6329 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6329 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.
