Description

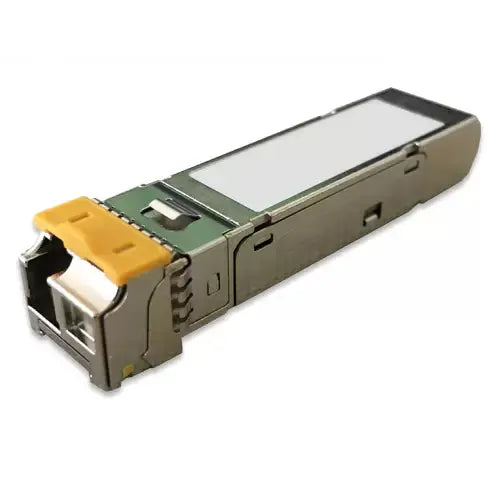

The MGB family of the SFP Gigabit Ethernet module can be installed into PLANET Switch and Media Converter products with 1000BASE-SX/LX/BX SFP interface. The deployment distance can be extended from 550m (Multi-mode, LC) to up to 120 kilometers (Single-mode, LC). The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch/Media Converter.
| PHYType | IEEE 802.3z 1000BASE-BX |
| Fiber Type | Multi-mode |
| Connector | Simplex LC/UPC |
| DDM | Yes |
| Wave length | MGB-TSA: TX1310nm, RX1550nm MGB-TSB: TX1550nm, RX1310nm |
| Maximum Distance | 2km |
| Operating Temperature | -40~85 degrees C |
