EN Certifications
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage Power over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately
Wi-Fi antenna Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Connectivity, IEEE 802.11ax standard
Ports (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Mounting The access point ships with a white mount clip that can attach to both wall and ceiling.
You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.
Power consumption Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio coverage Dual Radio for simultaneous dual-band operation
5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Warranty Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

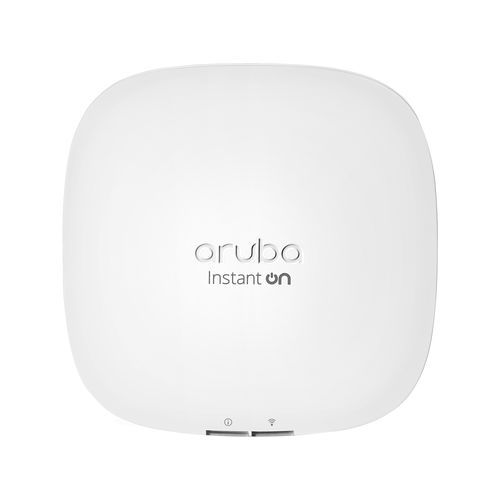

Differentiator "Aruba Instant On AP22 Indoor Access Points offer a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance, high-density small business environments like hotels, restaurants, and professional offices. Supporting Wi-Fi 6 standard , access points have a peak data rate of 1.2 Gbps and scale up to 25 access points, without additional cost and complexity. For use in those areas where no specific regulatory domain is required. Includes AP and 12V/18W Power adapter.
Weight 1.1 lb
Weight 500g
Dimensions 1.5 x 6.3 x 6.3 in
Dimensions 37x 160 x 160 mm
